Description
Complete your kitchen ventilation installation with the NEFF Recirculation Starter Kit for 70cm Worktops. Designed for compatible NEFF venting hobs with integrated extraction systems, this genuine NEFF accessory kit provides the flat ducting components needed for a partly ducted recirculation setup.
Suitable for kitchens with worktops measuring at least 70cm deep, the Z861KR0 helps direct filtered cooking air through the kitchen cabinetry and back into the room, without requiring an external wall vent.
Featuring two vertical 90° duct bends, three connector sleeves and a 500mm straight duct section, this practical installation kit supports a neat, integrated ventilation arrangement.
Designed for NEFF Venting Hobs
The NEFF Z861KR0 is developed for compatible hobs featuring an integrated ventilation module.
These innovative cooking appliances combine a hob and extraction system in one unit, drawing cooking vapours down through the hob rather than relying on a traditional overhead cooker hood.
This recirculation starter kit provides components for connecting the extraction outlet to a suitable partly ducted recirculation arrangement.
Suitable for Worktops 70cm Deep or More
Designed specifically for kitchens with worktops measuring at least 700mm deep, the Z861KR0 provides a practical solution for compatible venting hob installations.
The included ducting components allow filtered air to be routed through the cabinetry beneath the worktop.
This makes the kit particularly useful when planning a fitted kitchen with an integrated extraction hob.
Partly Ducted Recirculation System
Create an effective recirculation arrangement without the need to vent cooking air outside your home.
In a compatible installation, cooking vapours are drawn through the hob's extraction and filtration system before the air is directed through the flat ducting and returned to the kitchen.
This arrangement offers flexibility for kitchen layouts where external extraction ducting is impractical.
Two Vertical 90° Duct Bends
The kit includes two vertical 90° L-bend flat duct elements.
These purpose-designed components help direct airflow through the space beneath the hob and around the kitchen cabinetry.
Their rigid construction supports a structured ducting arrangement suited to compatible NEFF ventilation systems.
Three Flat Duct Connector Sleeves
Connect the ducting sections using the three supplied female connector sleeves.
These components are designed to join compatible male flat duct elements, helping create a continuous route for recirculated air.
The modular connection system makes it easier to assemble the ducting configuration required for your kitchen.
500mm Straight Duct Section
The included 500mm straight flat duct element provides an additional section for routing air through the installation.
It works with the supplied bends and connector sleeves to form part of the recirculation pathway.
The flat design helps accommodate the space restrictions commonly found beneath fitted kitchen worktops.
Designed for Integrated Kitchen Installations
Maintain a clean, streamlined kitchen appearance with ventilation components designed to fit within the cabinetry.
The flat ducting system helps keep extraction equipment concealed beneath the cooking surface, allowing your kitchen design to remain uncluttered.
The kit supports suitable installations with worktop heights of up to 960mm.
Genuine NEFF Accessory
Choose an original NEFF accessory designed for use with compatible appliances.
The Z861KR0 is part of NEFF's dedicated venting hob installation range, providing purpose-designed components for approved recirculation configurations.
Using compatible installation accessories helps ensure the ventilation system is assembled according to the appliance manufacturer's requirements.
Complete Your Recirculation Installation
The NEFF Recirculation Starter Kit Z861KR0 offers a convenient starting point for installing a compatible venting hob in a kitchen with worktops at least 70cm deep.
Combining rigid flat ducting, vertical bends and connecting sleeves, it provides essential components for a partly ducted recirculation arrangement.
Please note: This is an installation accessory, not a complete ventilation appliance. Check compatibility with your specific NEFF hob before purchasing. Additional components may be required depending on the installation.
Key Features
- Genuine NEFF recirculation starter kit
- Designed for compatible NEFF venting hobs
- Suitable for hobs with integrated extraction systems
- Intended for partly ducted recirculation installations
- Suitable for worktops measuring 70cm deep or more
- Minimum worktop depth of 700mm
- Includes two vertical 90° L-bend flat duct elements
- Includes three female connector sleeves
- Includes one 500mm straight flat duct element
- Rigid flat ducting construction
- Designed to route recirculated air through kitchen cabinetry
- Supports installations without external extraction ducting
- Modular components for compatible ducting arrangements
- Suitable for integrated kitchen ventilation systems
- Supports compatible worktop installations up to 960mm high
- Original NEFF installation accessory
- Designed for use with compatible flat ducting components
- Additional installation accessories may be required
- Compatible NEFF venting hob required
- Hob and ventilation appliance sold separately
Technical Specifications
- Brand: NEFF
- Model: Z861KR0
- Manufacturer Part Number: 17007181
- Product Type: Recirculation Starter Kit
- Accessory Category: Venting Hob Installation Accessories
- Installation Configuration: Partly Ducted Recirculation
- Compatible Appliance Type: Selected Hobs with Integrated Ventilation
- Minimum Worktop Depth: 700mm
- Maximum Supported Worktop Height: 960mm
- Ducting Type: Rigid Flat Ducting
- Ducting Material: Plastic
- Vertical 90° L-Bend Elements: 2
- L-Bend Connection Type: Male
- Connector Sleeves: 3
- Connector Sleeve Type: Female
- Straight Flat Duct Elements: 1
- Straight Duct Length: 500mm
- Net Weight: 2.6kg
- Packaged Weight: 3.7kg
- Packaging Height: 175mm
- Packaging Width: 400mm
- Packaging Depth: 595mm
- EAN: 4242004264675

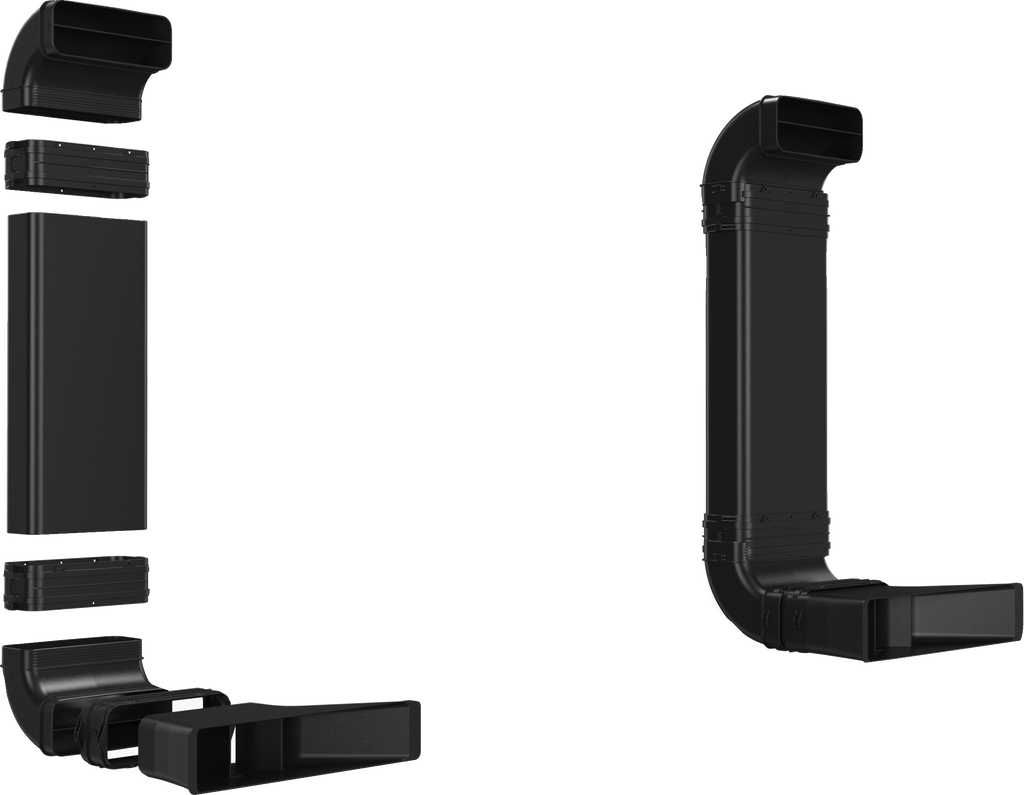

What's in the Box?
- 2 × Vertical 90° L-Bend Flat Duct Elements
- 3 × Female Flat Duct Connector Sleeves
- 1 × 500mm Straight Flat Duct Element
